		R66
NxG





				RIVIERA EDITION
- Limited edition, only available for the next twelve months.
- Advanced Garmin avionics.
- 3-axis Garmin autopilot.
- Exclusive Midnight + Umber interior, featuring premium materials and design.

				PALO VERDE
- Garmin G500H 700P/700P TXi or an optional 1060/700P TXi flight display as well as Garmin GTN 750Xi GPS/COM/NAV.
- 2-axis Garmin autopilot.

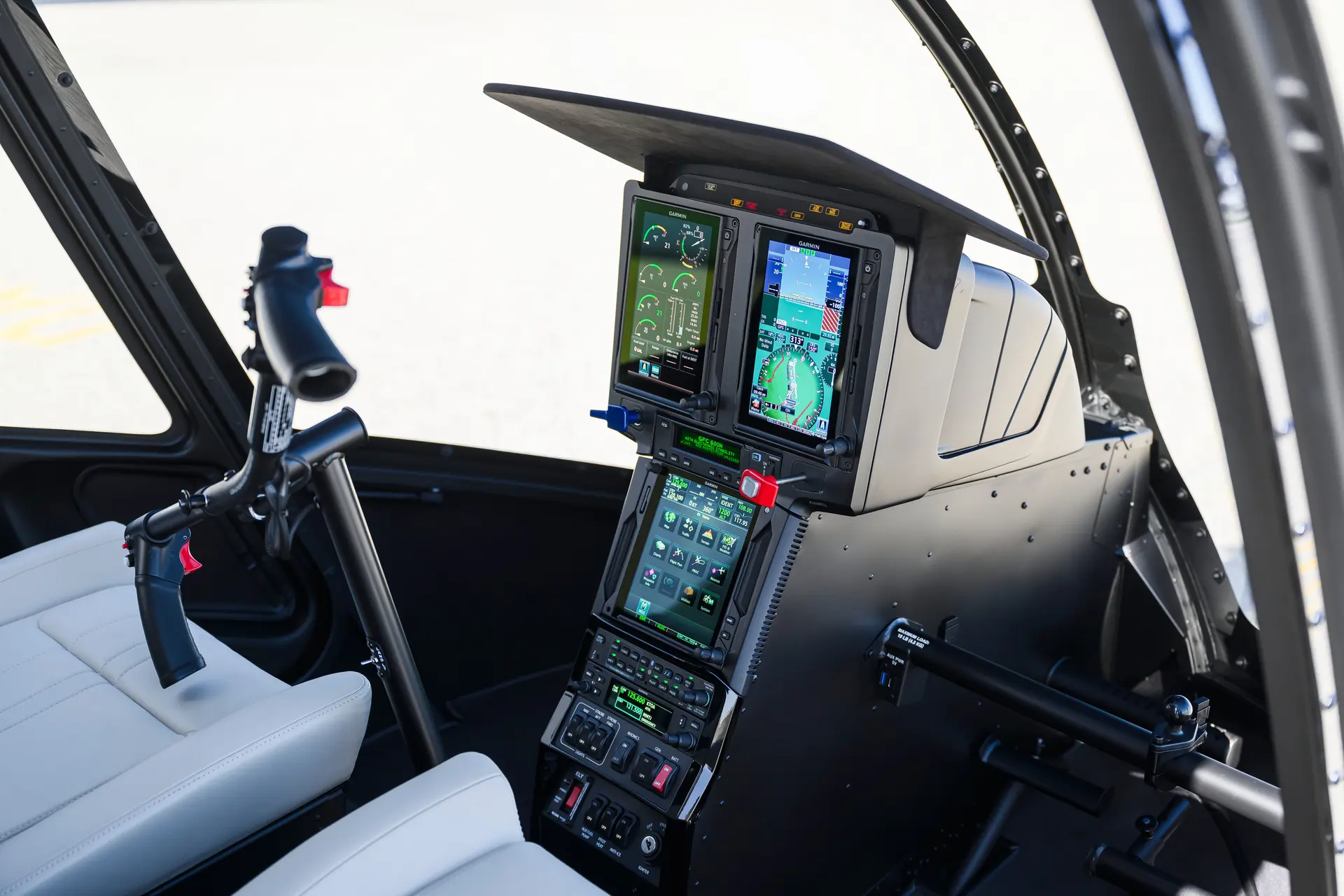

- All-glass cockpit with sun visors and glare shield.

				SOUTHWOOD
- Garmin G500H 700P/700P TXi flight display.
- 2-axis Garmin autopilot.
- Interior available in Stone or Graphite.
- Impact-resistant windshield.
- New LED landing lights.
SPECIFICATIONS
| Helicopter | R66 NxG |
|---|---|
| Engine | Rolls-Royce RR300 Turbine |
| Horsepower | 300 shp turboshaft; derated to 270 shp takeoff & 224 shp continuous |
| Maximum Gross Weight | 2700 lb (1225 kg) |
| Approximate Empty Weight (Including Oil & Std Avionics) | 1290 lb (585 kg) |
| Fuel Capacity / Weight | 73.6 gal / 493 lb (224 kg) |
| Pilot, Passengers, and Baggage (with Maximum Fuel) | 917 lb (416 kg) |
| Maximum Airspeed (Vne) at Maximum Gross Weight | 130 kts (240 km/h) |
| Cruise Speed at Maximum Gross Weight | up to 110 kts (204 km/h) |
| Maximum Range (No Reserve) | approx 350 nm (650 km) |
| Hover Ceiling IGE at Maximum Gross Weight | over 10,000 ft |
| Hover Ceiling OGE at Maximum Gross Weight | over 10,000 ft |
| Rate of Climb | over 1000 fpm |
| Maximum Operating Altitude | 14,000 ft |
| Electrical System | 28 volt |
